MLA-LP: Multi-Level Adapters with Learnable Prompt for Medical Image Anomaly Detection

This repository contains the implementation of the Multi-Level Adapters with Learnable Prompt (MLA-LP) model for medical image anomaly detection, as described in the paper:

"Abnormality Detection in Medical Images Based on Visual-Language Model"
Hoang-Phu Thanh-Luong, Van-Thai Vu, and Quoc-Ngoc Ly
University of Science, Vietnam National University, Ho Chi Minh City, Vietnam

The full paper, "Abnormality Detection in Medical Images Based on Visual-Language Model", is available at:
Read the paper

Overview

The MLA-LP model leverages the pre-trained CLIP vision-language model, enhanced with multi-level adapters and learnable prompts, to address the challenge of detecting and segmenting abnormalities in medical images. The model excels in both zero-shot and few-shot learning scenarios, achieving superior performance in anomaly classification (AC) and anomaly segmentation (AS) tasks across diverse medical imaging datasets.

Key Features

  • Multi-Level Adapters: Adapts intermediate layers of CLIP’s visual encoder to capture medical-specific features.
  • Learnable Prompts: Dynamically adjusts textual prompts to improve flexibility and generalization across medical datasets.
  • Zero-Shot and Few-Shot Learning: Performs effectively with minimal or no labeled data.
  • Datasets Evaluated: ChestXray, HIS, OCT17, BrainMRI, LiverCT, RESC.

Performance

  • Few-Shot Setting: Achieves an average AUC improvement of 0.28% for anomaly classification and 0.08% for anomaly segmentation compared to state-of-the-art models.
  • Zero-Shot Setting: Achieves an average AUC improvement of 0.39% for anomaly classification.

Installation

To set up the environment for running the MLA-LP model, follow these steps:

1# Install PyTorch with CUDA support (adjust based on your system)
2pip install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu118
3
4# Install additional dependencies
5pip install -r requirements.txt

Ensure you have a compatible CUDA-enabled GPU for optimal performance. The requirements.txt file includes all necessary Python packages.

Quick Start

Training in Few-Shot Setting

To train the model in a few-shot setting (e.g., k=4 shots) for the Brain dataset:

1python train_few.py --obj Brain --shot 4

Training in Zero-Shot Setting

To train the model in a zero-shot setting for the Liver dataset:

1python train_zero.py --obj Liver

Notes

  • Replace --obj with other supported datasets (e.g., ChestXray, HIS, OCT17, BrainMRI, LiverCT, RESC) as needed.
  • Ensure the dataset is properly formatted and accessible in the specified directory (see data/ for details).

Results

Few-Shot Learning

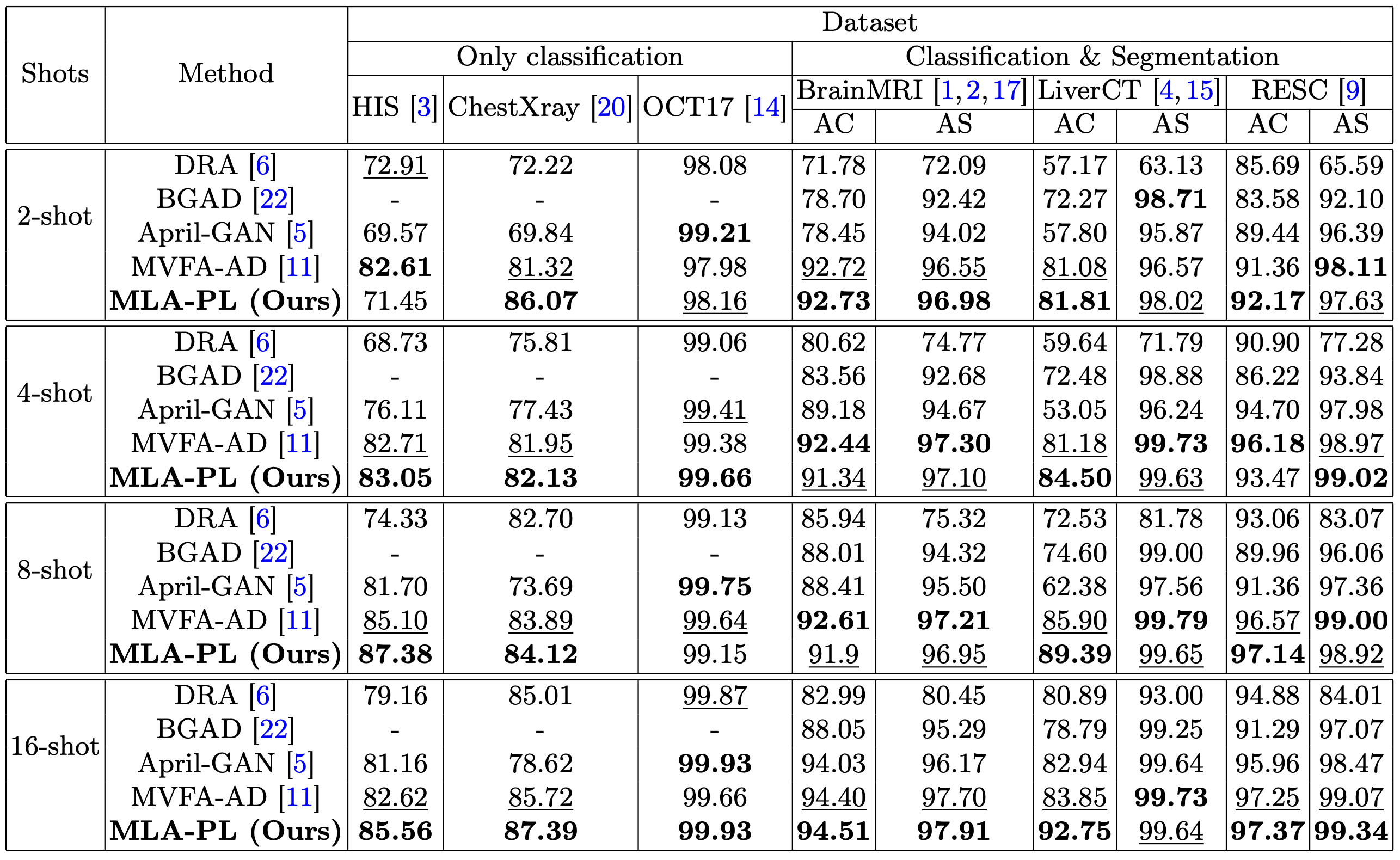

The model demonstrates superior performance in few-shot settings, particularly with 16-shot configurations. The table below summarizes the AUC (%) for anomaly classification (AC) and anomaly segmentation (AS) across benchmark datasets, compared to state-of-the-art methods (data sourced from Huang et al. [11]).

Few-Shot Results

Zero-Shot Learning

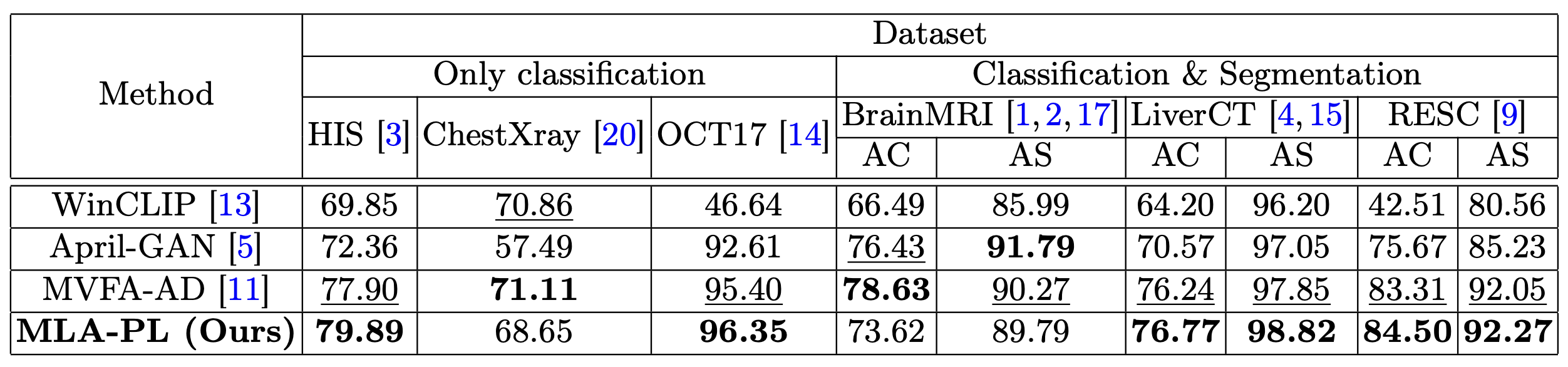

In zero-shot scenarios, the model achieves competitive performance without requiring labeled training data.

Zero-Shot Results

Visualization

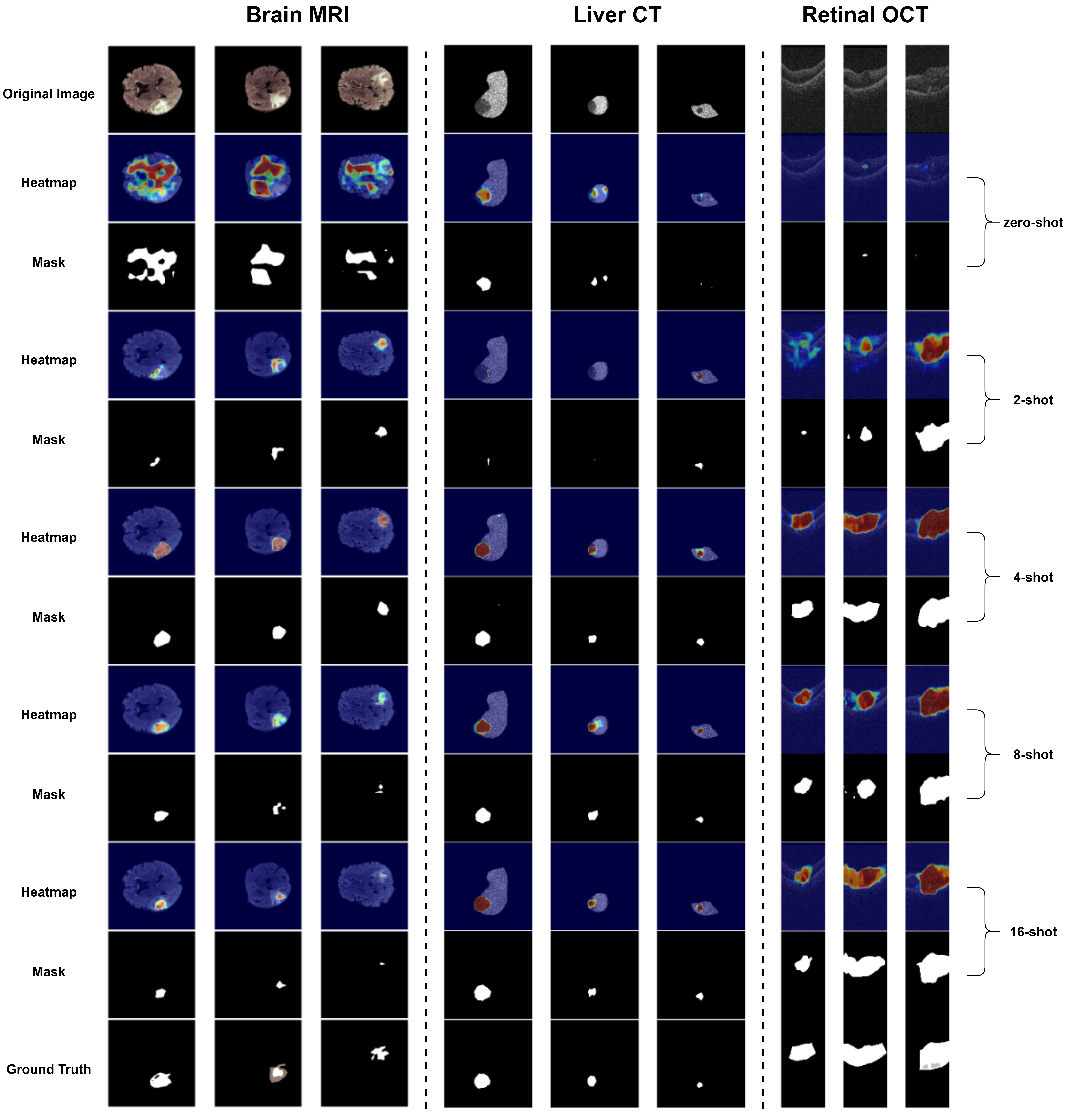

Visualizations of anomaly detection and segmentation results are provided to illustrate the model’s capability to localize abnormalities in medical images.

Visualization

Repository Structure

├── data/                   # Dataset directory (ChestXray, HIS, OCT17, BrainMRI, LiverCT, RESC)
├── images/                 # Result visualizations and figures
├── train_few.py            # Script for few-shot training
├── train_zero.py           # Script for zero-shot training
├── requirements.txt        # List of dependencies
├── README.md               # This file
└── src/                    # Source code for the MLA-LP model

Datasets

The MLA-LP model was evaluated on the following benchmark datasets:

  • ChestXray: Hospital-scale chest X-ray database.
  • HIS: Dataset for lymph node metastasis detection.
  • OCT17: Optical coherence tomography dataset.
  • BrainMRI: Multimodal brain tumor segmentation dataset.
  • LiverCT: Liver tumor segmentation benchmark.
  • RESC: Additional medical imaging dataset.

Please refer to the respective citations for details on accessing and preparing these datasets.

Future Work

  • Multi-Level Adapter Forward Prompt Learner: Exploring further enhancements to the adapter and prompt learning mechanisms.
  • Bone Dataset: Developing a new bone dataset for classification and segmentation tasks, with plans for public release to support the medical research community.
  • Limitations Analysis: Investigating specific datasets where the model may underperform to better understand its strengths and weaknesses.

Contact

For questions, feedback, or collaboration inquiries, please reach out to:

Acknowledgments

This research is supported by funding from the University of Science, Vietnam National University - Ho Chi Minh City.
